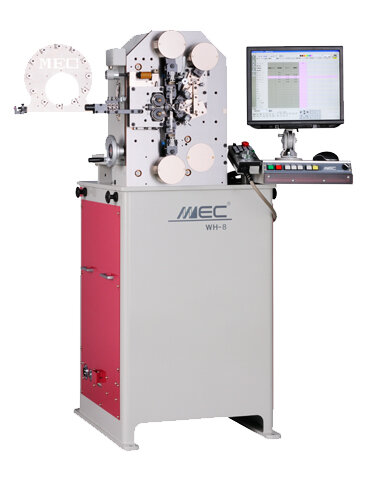

WH-8 Compression Spring Machine
WH-8 2 Point Coiling machine
  • Item number: WH-8
Price on application
Available now!
question
Description
Short Information
Description

Compression spring machine for 0.2 - 0.8 wire diameter


2-point coiling machine with a wire diameter of 0.2 to 0.8 mm

  • Maximum outer coil diameter of 28 mm
  • Equipped with 5 standard axes: feed, cut, wedge pitch, push pitch, and outside coil diameter.
  • An optional initial tension servo can be added.
  • Enables easy setup and high-speed production at a low cost.
  • Includes our newly-developed specialist MNO program for spring production, enabling simple and precise operations.
  • Features Oriimec?s world-renowned precision processing technology for ultra-thin wires.
  • The WH-8 also includes cutting-edge computer control technology.


    • Dedicated MNO Program for Spring Production


  • Easy operations for quicker preparation.
  • High resolution for controlling the latest servo motors.
  • Compatible with compression spring creation programs based on line graphs.
  • Allows varied control based on measurement results, such as the pitch and diameter.
  • Common program for both torsion machines and coiling machines.
  • Includes a motor sensor system.
  • Versatile production management screen and production data collection function.


    • Taper synchronization constant

  • Enables the taper tilt to be managed with a value from 0 to 100.
  • Suitable for load adjustment in addition to shape adjustment, as fine adjustment can be performed in 100 levels.


    • Parts for 2-point mechanism

  • All fine-adjustment mechanisms have scale marks to improve reproducibility and ease of fine adjustment.
  • Cut operations use a crank mechanism to achieve high-speed production.
  • Coiling pin adjustment features an oscillating mechanism.

    • Optional Equipment

  • Initial tension servo unit
  • Slip sensor to detect slips in wire feeding
  • MSD-1 sensor with servo motor to enable measurement of free length and outer diameter.
  • IS-1 shape detection unit with camera
    • Video
