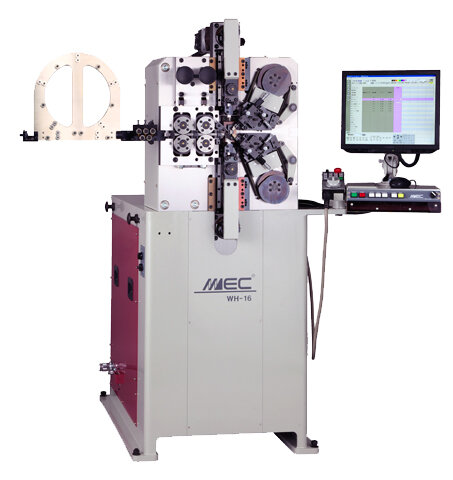

WH-16 Compression Spring Machine
Description
Compression spring machine 0.5 - 1.6 wire diameter
5-point coiling machine with a wire diameter of 0.5 to 1.6 mm
Enables easy setup and high-accuracy, high-speed production of springs.
The clockwise/counterclockwise direction can be switched simply by configuring a setting in the program.
An optional rotation point servo and initial tension servo can be added to the coiling point.
The alignment of the cut tool and core does not require readjustment after being decided once.
One-touch switching between oscillating cut and straight cut. The oscillating cut bearing (oscillation) can be freely adjusted.
An optional slip sensor is provided for detecting slips when feeding
Includes our newly-developed specialist MNO program for spring production, enabling simple and precise operations.
Dedicated MNO Program for Spring Production
Easy operations for quicker preparation.
High resolution for controlling the latest servo motors.
Compatible with compression spring creation programs based on line graphs.
Allows varied control based on measurement results, such as the pitch and diameter.
Common program for both torsion machines and coiling machines.
Includes a motor sensor system.
Versatile production management screen and production data collection function.
Newly-developed rotation point servo
Our new WH-16 point unit includes a rotating servo.
Select the adjustment method of your choice (1st pin or 2nd pin can be selected).
You can also select a different servo for both the 1st pin and 2nd pin and use them in conjunction.
Taper synchronization constant
Enables the taper tilt to be managed with a value from 0 to 100.
Suitable for load adjustment in addition to shape adjustment, as fine adjustment can be performed in 100 levels.
Parts for 2-point mechanism
All fine-adjustment mechanisms have scale marks to improve reproducibility and ease of fine adjustment.
Cut operations use a crank mechanism to achieve high-speed production.
Coiling pin adjustment features an oscillating mechanism.
Optional Equipment
Initial tension servo unit
Slip sensor to detect slips in wire feeding
Rotation point servo (rotation operations)
IS-1 shape detection unit with camera
