SH-3 Compression Spring machine
Description

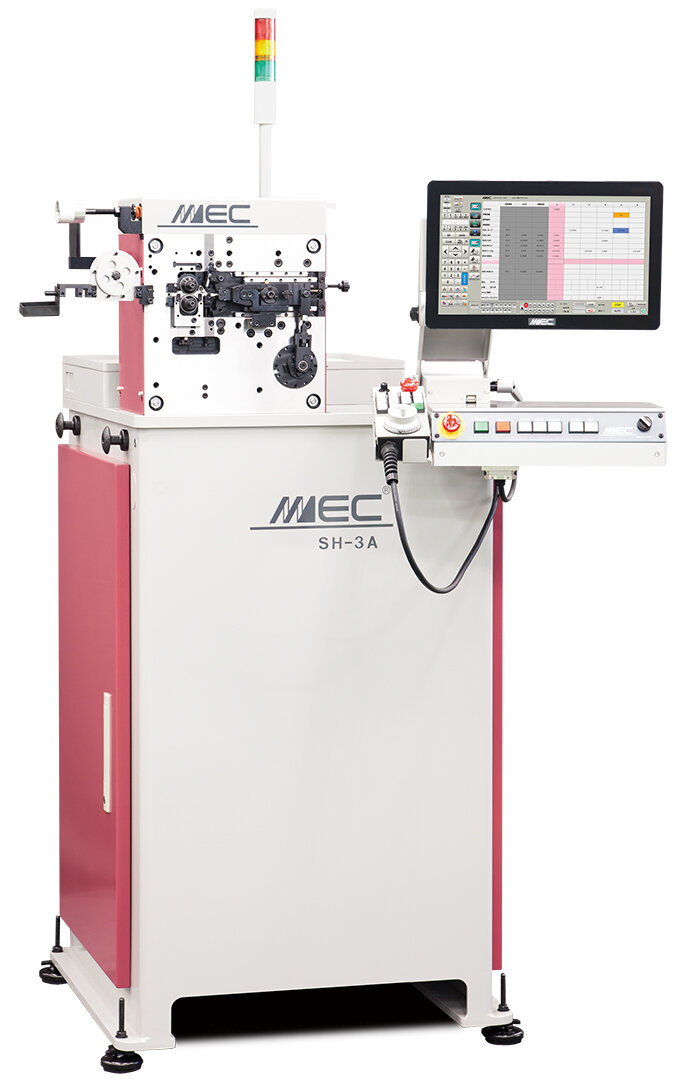

Coiling machine with coiling point
1-point coiling machine with a wire diameter of 0.08 to 0.3 mm
Equipped with 8 standard axes: feed, cut, pitch, point, torsion, initial tension, coil front-back, and MSD-1.
Easier setup and greater speed than previous models, as the cut axis and torsion axis are separated.
Suitable for high-speed production of ballpoint pen springs, torsion springs, and elliptical springs in addition to standard cylindrical springs.
Optional ultra-thin wire attachment can be used to coil springs with a diameter of 0.08 mm or less.
Dedicated MNO Program for Spring Production
Easy operations for quicker preparation.
High resolution for controlling the latest servo motors.
Compatible with compression spring creation programs based on line graphs.
Allows varied control based on measurement results, such as the pitch and diameter.
Common program for both torsion machines and coiling machines.
Includes a motor sensor system.
Versatile production management screen and production data collection function.
Taper synchronization constant
Enables the taper tilt to be managed with a value from 0 to 100.
Suitable for load adjustment in addition to shape adjustment, as fine adjustment can be performed in 100 levels.
3 types of wire guides
The SH-3II has 3 wire guides with different lengths:
Short guide with a guide length of 23 mm. Provides greater accuracy for short springs due to its shorter guide length, while retaining the same clearance length as a standard wire guide.
Standard wire guide with a guide length of 30 mm. Enables use of all tools available for the previous SH-3 wire guide.
Wire guide for ultra-thin wires with a guide length of 16 mm. Enables coiling of wires with a diameter of 0.08 mm or less.
Optional Equipment
Core forward/reverse servo unit
Slip sensor to detect slips in wire feeding
Capacitance level sensor
IS-1 shape detection unit with camera
