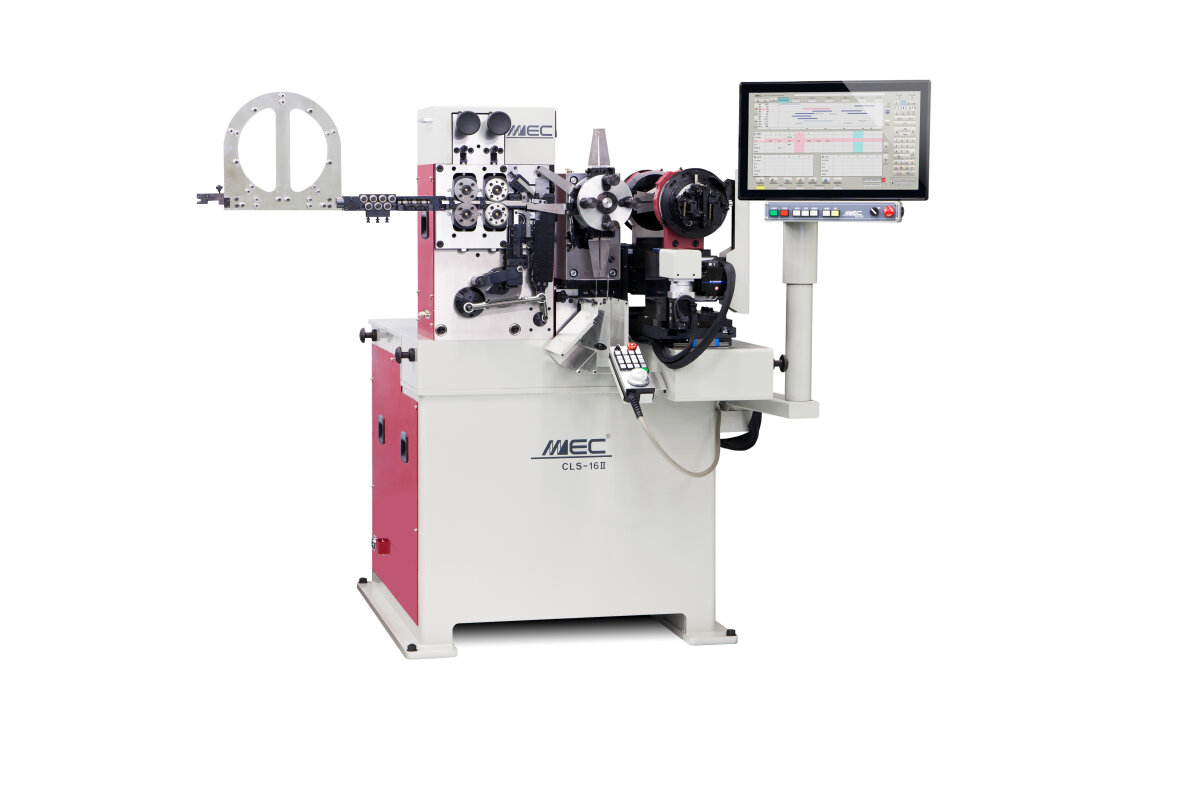

High speed extension spring machine
up to 1.60mm wire diameter

Enables high-speed production of extension springs with
a beautiful hook shape.

A dedicated extension spring machine for wire diameters of 0.5 to 1.6 mm.

Produces the beautiful hook shape expected of the CLS series.

Enables a much higher speed of production than general torsion machines.

The 11 axis control of the CLS-16II enables many locations to be controlled by values, including the coiling point for 3D operations, and provides high performance preparation and reproduction.

Make the production of German hooks and U hooks easier

The CLS-16II maintains the production performance of English loops and bicyclic loops, while greatly enhancing the ease of producing German hooks and U hooks.

The number of Hooking tools for processing the hooks has been increased from three to six, to enable easier adjustment and stronger coil retention.

Pattern programs

Programs are automatically generated for the 3D coiling point operations and wire feed amounts required for the shapes of same diameter, different diameter, one-side U hooks, and both-side U hooks.
