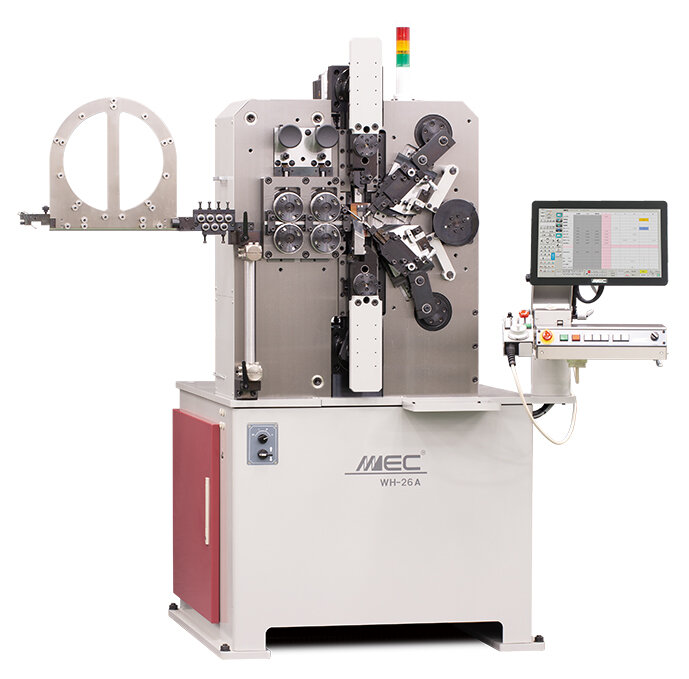

Compression Spring Machine WH-26
Description
Compression spring machine 0.6 - 2.6 wire diameter
2-point coiling machine with a wire diameter of 0.6 tto 2.6 mm
Enables easy setup and high-accuracy, high-speed production of springs.
The clockwise/counterclockwise direction can be switched simply by configuring a setting in the program.
An optional rotation point servo and initial tension servo can be added to the coiling point.
The alignment of the cut tool and core does not require readjustment after being decided once.
One-touch switching between oscillating cut and straight cut. The oscillating cut bearing (oscillation) can be freely adjusted.
An optional slip sensor is provided for detecting slips when feeding
Includes our newly-developed specialist MNO program for spring production, enabling simple and precise operations.
Dedicated MNO Program for Spring Production
Easy operations for quicker preparation.
High resolution for controlling the latest servo motors.
Compatible with compression spring creation programs based on line graphs.
Allows varied control based on measurement results, such as the pitch and diameter.
Common program for both torsion machines and coiling machines.
Includes a motor sensor system.
Versatile production management screen and production data collection function.
2-point coiling mechanism
Enables the clockwise/counterclockwise direction to be switched simply by configuring a setting in the program. Heavy sliding parts do not need to be changed during replacement.
Can produce coils with an outer diameter of up to 70 mm, increasing the range of items that your company can produce (wire guide length: 110 mm).
Taper synchronization constant
Enables the taper tilt to be managed with a value from 0 to 100.
Suitable for load adjustment in addition to shape adjustment, as fine adjustment can be performed in 100 levels.
Advanced cut slide function
The alignment of the cut tool and core does not require readjustment after being decided once.
As the cut slide and core slide are both located on the center slide, the positional relationship of the two tools does not change, meaning that readjustment is not required
The cutting method can be changed. You can easily switch between oscillating cut and straight cut.
The oscillating cut bearing (oscillation) can be adjusted. Adjust the bearing using the eccentric pin on the slide.
